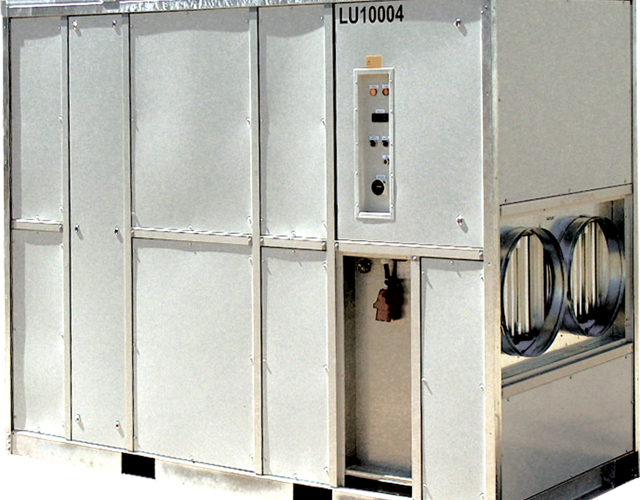

Airhandler
Low-noise water-cooled ventilation unit with a 100 kW cooling capacity, fitted with a heavy-duty fan that produces strong air output. The unit is ready for use and easy to install with its quick-connectors. The machine can be moved easily with a forklift or crane.
Airhandler
Technical specifications
Cooling capacity
100 kW
Current (nominal)
19 A
Capacity steps
Frequentie geregeld
Max. air flow
12500 m³/h
External (Air) pressure
1050 Pa
Power connection
32 A CEE
Voltage
400 V
Recommended fuses
25 A
Phases
3 + A
Water connection
2″ Bauer
Air duct(s)
2 x 500 / 1 x 1000 mm
Frequency
50 Hz
Water flow (in lit/s)
4.16 L/s
Water flow (in m3/h)
15 m³/h
Length
2715 mm
Width
1230 mm
Height
2220 mm
Sound level (at 5 m)
59 dB(A)
Sound level (at 1 m)
73 dB(A)
Weight
1300 kg
Sound level (at 10 m)
53 dB(A)
