OG1000C

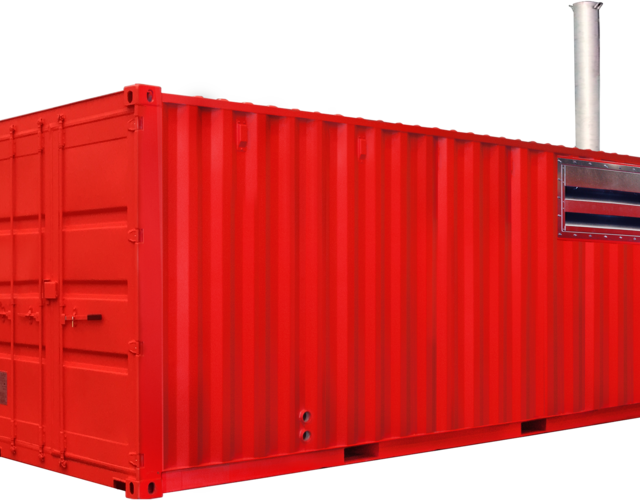

Gas- or diesel-fired mobile boiler room with a heating capacity of 1,000 kW installed in a robust steel heating container. The powerful and compact unit is easy to install. The mobile industrial boilers provide water temperatures of up to 90 °C and pressures of up to 6 bar. The efficient boiler features various safety facilities, frost protection, low NOx burners, smart control technology and has the lowest emissions, energy consumption and noise levels in the European market.
OG1000C
Technical specifications
Heating capacity
1000 kW
Voltage
400 V
Power connection
32 A CEE
Temperature range
50 - 90 °C
Internal pump
44 m³/h
Controller
Digitaal
Water connection
4″ Bauer
Oil tank double-wall
Optioneel
Volume expansion vessel
450 l
Recommended working pressure
1.6 - 3.0 bar
Safety valve
6 bar
Dimensions LxWxH (including connections)
6370x2500x2735 mm
Length
6058 mm
Width
2438 mm
Height
2591 mm
Fuel types
Gas / Diesel
Low NOx class
3
Consumption - oil - full load
90 kg/h
Consumption - gas - full load
122 m³/h
Dimensions (LxWxH)
6058 x 2438 x 2735 mm
Weight
7000 kg
Oil / Gas burner
Weishaupt
Brand pump
Grundfoss
