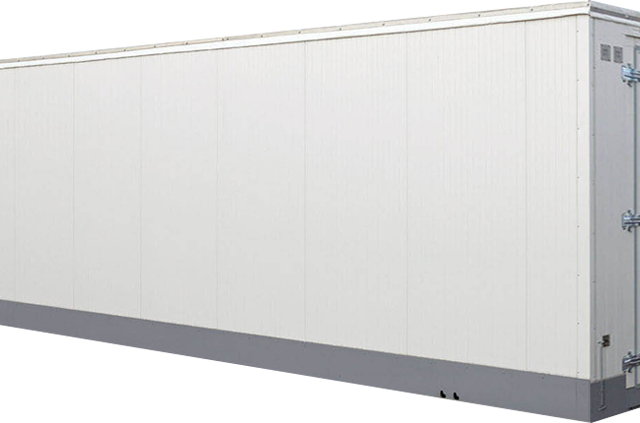

Freezer unit
Ready-for-use mobile freezer unit with a volume of 100 m³ and a large freezing overcapacity (temperature range down to minus 35 °C*). The frozen storage cell has been fitted with a flat anti-skid floor, lighting, a door with frame heating that opens smoothly (also from the inside), and has a very low entry height. The frozen storage cell meets the HACCP/GMP requirements, and standard features include a data log system. The unit is easy to install with a crane truck. This storage cell is low noise and low energy.
Freezer unit
Technical specifications
Amount of pallets (euro)
28
Volume
100 m³
Min. inside temperature
-35 °C
Max. inside temperature
2 °C
Min. outside temperature
-20 °C
Max. outside temperature
37 °C
Power connection
32 A CEE
Voltage
400 V
Current (max)
21 A
Current (nominal)
14.8 A
Current (start)
39.5 A
Recommended fuses
25 A
Frequency
50 Hz
Phases
3 + N + A
Length (external)
12000 mm
Width (external)
3500 mm
Height (external)
3000 mm
Length (internal)
10500 mm
Width (internal)
3200 mm
Height (internal)
2700 mm
Door height
2500 mm
Door width
2000 mm
Threshold height
200 mm
Max. load
1200 Kg/m²
Weight
6700 kg
Sound level (at 10 m)
50 dB(A)
Sound level (at 5 m)
56 dB(A)
Sound level (at 1 m)
70 dB(A)
Insulation value
0.211 W/m²K
