MK01

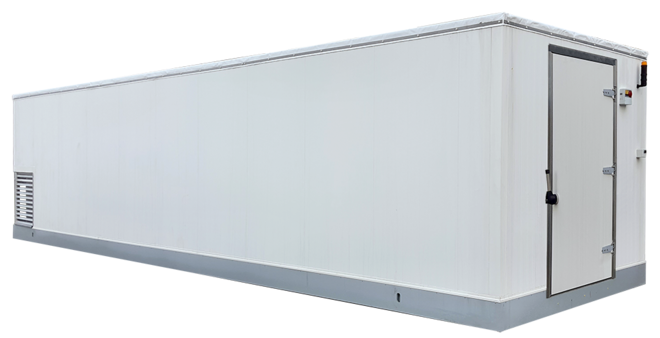

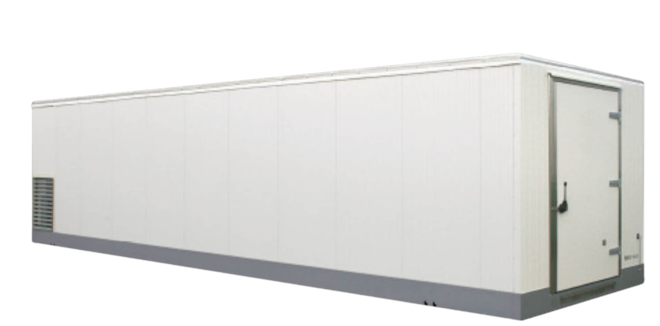

Ready-for-use mobile cold storage cell with a volume of 84 m³ and a large refrigeration capacity (overcapacity). The cold storage cell has been fitted with a flat anti-skid floor, lighting, a door that opens smoothly (also from the inside), and has a very low entry height. The cold storage cell meets the HACCP/GMP requirements, and standard features include a data log system. The unit is easy to install with a crane truck. The storage cell is low noise and low power.
MK01

Technical specifications

Amount of pallets (euro) 26
Volume 84 m³
Min. inside temperature -2 °C
Max. inside temperature 10 °C
Min. outside temperature -20 °C
Max. outside temperature 43 °C
Power connection 16 A CEE
Voltage 400 V
Current (max) 7.8 A
Current (nominal) 6.9 A
Current (start) 37 A
Recommended fuses 16 A
Frequency 50 Hz
Phases 3 + N + A
Length (external) 12000 mm
Width (external) 3000 mm
Height (external) 3000 mm
Length (internal) 10500 mm
Width (internal) 2700 mm
Height (internal) 2700 mm
Door height 2500 mm
Door width 1400 mm
Threshold height 200 mm
Max. load 1200 Kg/m²
Weight 5800 kg
Sound level (at 10 m) 50 dB(A)
Sound level (at 5 m) 56 dB(A)
Sound level (at 1 m) 70 dB(A)
Insulation value 0.211 W/m²K
