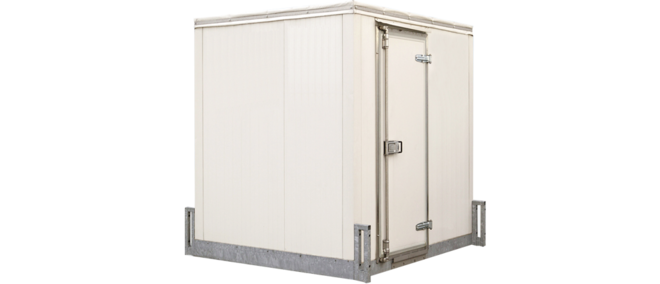

Cold storage cell

Ready-for-use mobile cold storage cell with a volume of 10 m³ and a large refrigeration capacity (overcapacity). The cold storage cell has been fitted with a flat anti-skid floor, lighting, a door that opens smoothly (also from the inside), and has a very low entry height. The cold storage cell meets the HACCP/GMP requirements and is easy to install, even in locations that are difficult to reach, as well indoors as outdoors. The storage cell is low noise and low power.
Cold storage cell

Technical specifications

Amount of pallets (euro) 3
Volume 10 m³
Min. inside temperature -2 °C
Max. inside temperature 10 °C
Min. outside temperature -20 °C
Max. outside temperature 35 °C
Power connection Schuko 230V
Voltage 230 V
Current (max) 7.2 A
Current (nominal) 4.7 A
Current (start) 22.7 A
Recommended fuses 16 A
Frequency 50 Hz
Phases 1 + N +A
Length (external) 2000 mm
Width (external) 2500 mm
Height (external) 2500 mm
Length (internal) 1840 mm
Width (internal) 2340 mm
Height (internal) 2260 mm
Door height 2100 mm
Door width 900 mm
Threshold height 160 mm
Max. load 420 Kg/m²
Weight 750 kg
Sound level (at 10 m) 38 dB(A)
Sound level (at 5 m) 44 dB(A)
Sound level (at 1 m) 58 dB(A)
Insulation value 0.264 W/m²K
