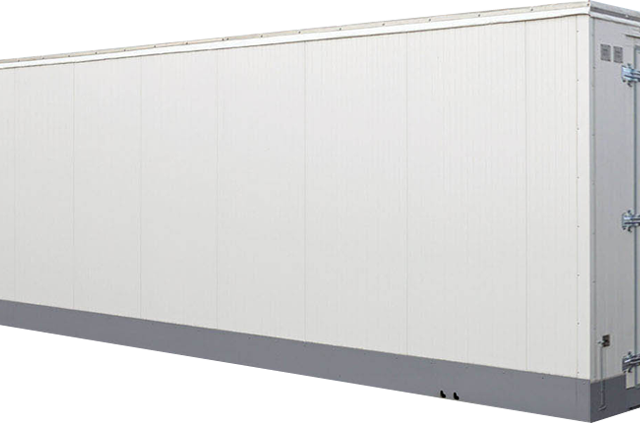

Cold storage cell
Ready-for-use mobile cold storage cell with a volume of 84 m³ and a large refrigeration capacity (overcapacity). The cold storage cell has been fitted with a flat anti-skid floor, lighting, a door that opens smoothly (also from the inside), and has a very low entry height. The cold storage cell meets the HACCP/GMP requirements, and standard features include a data log system. The unit is easy to install with a crane truck. The storage cell is low noise and low power.
Cold storage cell
Technical specifications
Amount of pallets (euro)
28
Volume
100 m³
Min. inside temperature
-2 °C
Max. inside temperature
10 °C
Min. outside temperature
-20 °C
Max. outside temperature
36 °C
Power connection
16 A CEE
Voltage
400 V
Current (max)
8.1 A
Current (nominal)
7.5 A
Current (start)
53 A
Recommended fuses
16 A
Frequency
50 Hz
Phases
3 + N + A
Length (external)
12000 mm
Width (external)
3500 mm
Height (external)
3000 mm
Length (internal)
10500 mm
Width (internal)
3200 mm
Height (internal)
2700 mm
Door height
2500 mm
Door width
2000 mm
Threshold height
200 mm
Max. load
1200 Kg/m²
Weight
6000 kg
Sound level (at 10 m)
47 dB(A)
Sound level (at 5 m)
53 dB(A)
Sound level (at 1 m)
67 dB(A)
Insulation value
0.211 W/m²K
