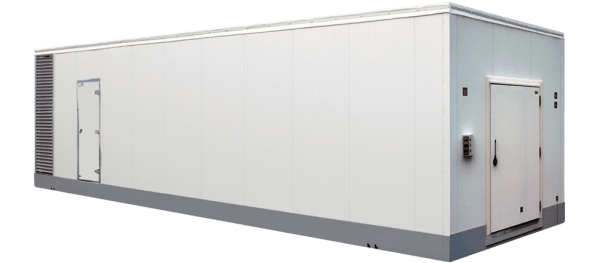

Shock freezer / Blast chiller
Representative, low-energy and low-noise cell constructed in accordance with HACCP & GMP requirements, with a volume of 60 m³. Especially developed for shock freezing / blast chilling of products. Ready for use and easy to install with a crane truck, even in locations that are difficult to reach. Can be used both outdoors and indoors. Uses ozone-friendly cooling agent. Accessible via door that can also be opened from the inside. Including lighting.
Shock freezer / Blast chiller
Technical specifications
Amount of pallets (euro)
23
Volume
60 m³
Min. inside temperature
-35 °C
Max. inside temperature
5 °C
Min. outside temperature
-20 °C
Max. outside temperature
37 °C
Power connection
M10 bout
Voltage
400 V
Current (max)
213.7 A
Current (nominal)
137 A
Current (start)
226 A
Recommended fuses
250 A
Phases
3 + N + A
Frequency
50 Hz
Dimensions (LxWxH)
12000x3500x8800 mm
Length (external)
12000 mm
Width (external)
3500 mm
Height (external)
3400 mm
Length (internal)
8800 mm
Width (internal)
3100 mm
Height (internal)
2150 mm
Door height
2100 mm
Door width
1400 mm
Threshold height
270 mm
Max. load
1200 Kg/m²
Weight
10100 kg
Sound level (at 10 m)
62 dB(A)
Sound level (at 5 m)
68 dB(A)
Sound level (at 1 m)
82 dB(A)
Insulation value
0.151 W/m²K
Internal dimensions (LxWxH)
8800x3100x2150 mm
