AC05i

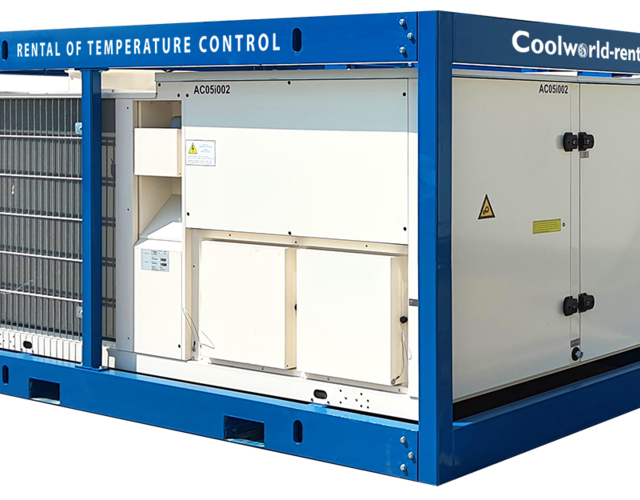

Ultra low-noise air-cooled air conditioner / heat pump with a 62 kW cooling and 56 heating capacity.. The unit is energy-efficient and can be used in both summer and winter. This unit is plug ‘n’ play, which makes it very easy to install and operate. The unit has been mounted in a robust steel frame fitted with grates to prevent the condensers from being damaged. It can be moved easily with the use of a lift truck or a crane.
AC05i

Downloads

Productsheet Downloads

Technical specifications

Cooling capacity 62 kW
Heating capacity 56 kW
Power consumption 18.7 kW
Power connection 63 A CEE
Voltage 400 V
Phases 3 + N + A
Recommended fuses 63/125 A
Outlet temperature (min.) 16 °C
Max. inside temperature 33 °C
Length 3530 mm
Width 2450 mm
Height 1880 mm
Sound level (at 10 m) 38 dB(A)
Weight 1645 kg
Warm air duct (diam.) 2x500 mm
Current (nominal) 55/101 A
