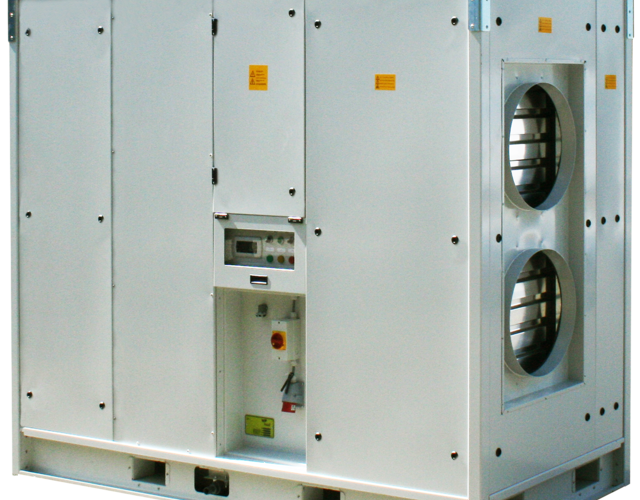

Airhandler

Energy-efficient Eurovent class A water-cooled ventilation unit with a nominal cooling capacity of 165 kW, fitted with extra strong fans ensuring a large air cast. The unit is plug and play and easy to install thanks to the use of quick-action couplings.
Airhandler

Technical specifications

Cooling capacity 165 kW
Current (nominal) 15 A
Capacity steps Frequentie geregeld
Max. air flow 18000 m³/h
External (Air) pressure 1050 Pa
Power connection 16 A CEE
Voltage 400 V
Recommended Fuses 16 A
Phases 3 + A
Water connection 2″ Bauer
Air duct(s) 2 x 500 / 1 x 1000 mm
Frequency 50 Hz
Water flow (in lit/s) 6.8 L/s
Water flow (in m3/h) 24.3 m³/h
Length 2630 mm
Width 1220 mm
Height 2250 mm
Sound level (at 5 m) 70 dB(A)
Sound level (at 1 m) 84 dB(A)
Weight 1300 kg
Sound level (at 10 m) 63 dB(A)
