CH05

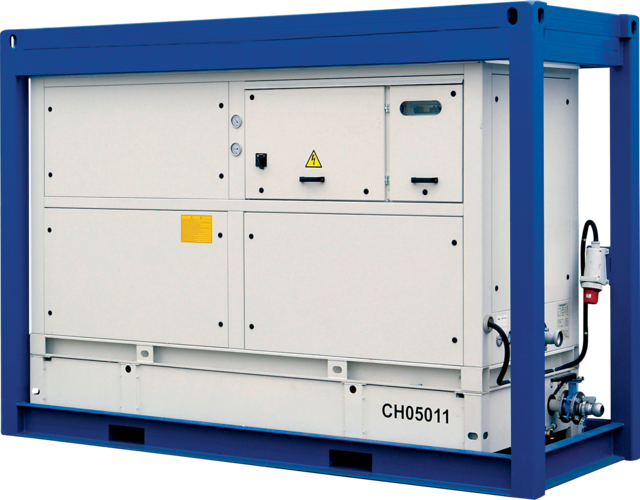

Air-cooled chiller with 50 kW cooling capacity, complete with internal water pump and buffer tank. This low-energy low-noise machine is ready for use. The machine is mounted in a robust frame with a shock-resistant grid for condenser protection and can be moved easily with a forklift or crane.
CH05
Technical specifications
Cooling capacity
50.7 kW
Power consumption
17.4 kW
Current (nominal)
38 A
Current (start)
148 A
Frequency
50 Hz
Power connection
63 A CEE
Voltage
400 V
Recommended fuses
63 A
Phases
3 + N + A
Internal pump
Ja
Water connection
2″ Bauer
Flow minimum (m³/h)
3 m³/h
Flow minimum (L/min)
50 L/min
Flow minimum (L/sec)
0.83 L/sec
Flow nominal (m³/h)
9 m³/h
Flow nominal (L/min)
150 L/min
Flow nominal (L/sec)
2.5 L/sec
Recommended volume
250 L
Maximum working pressure
4 bar
Nominal pressure drop
30 kPa
Sound level (at 5 m)
59 dB(A)
Sound level (at 1 m)
73 dB(A)
Length
3260 mm
Width
1280 mm
Height
2260 mm
Weight
1825 kg
Sound level (at 10 m)
53 dB(A)
