CZ20LTC

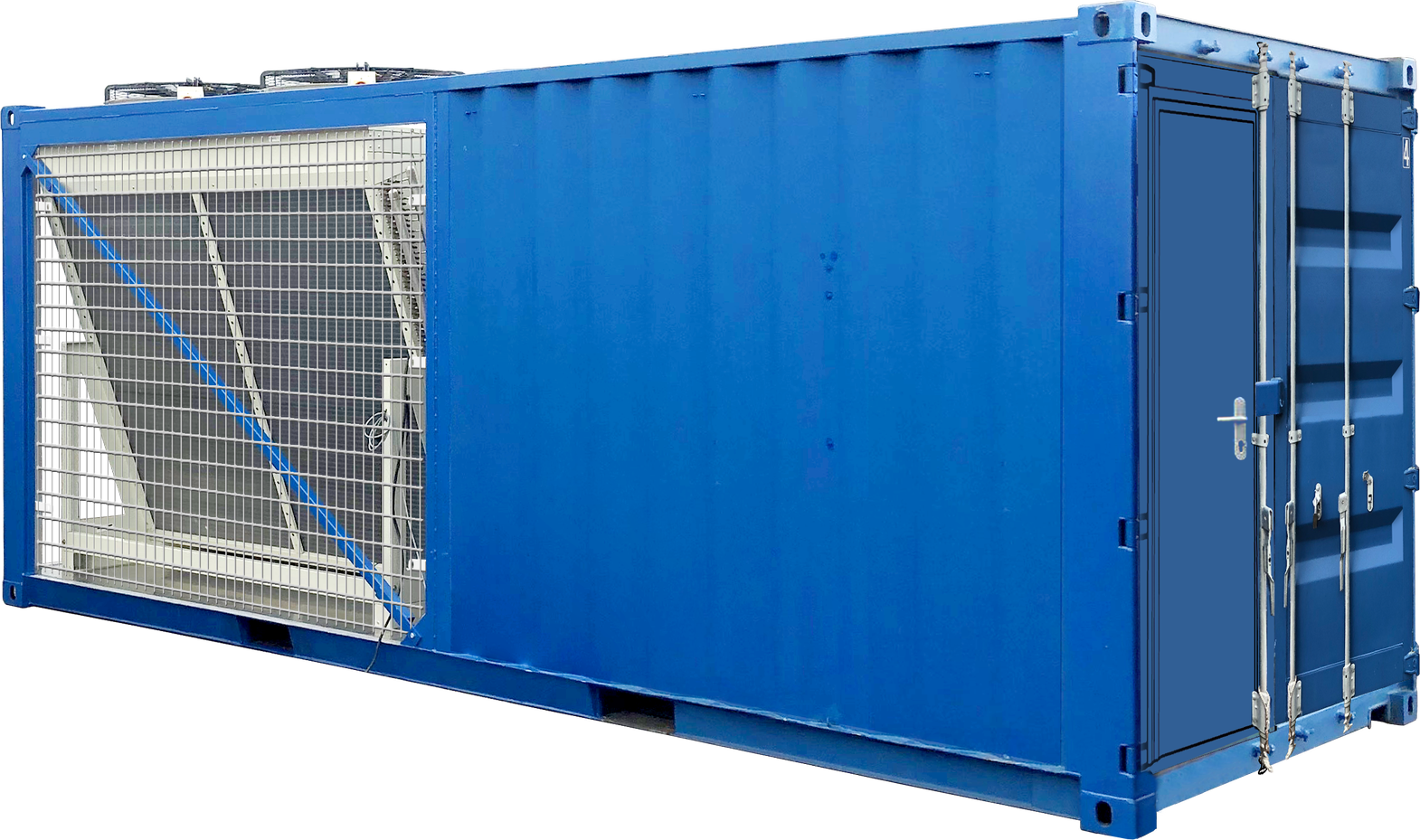

Low temperature chiller with a cooling capacity of 200 kW. This low-temperature chiller uses the natural refrigerant CO2 with a GWP value of 1. This low-temperature chiller is suitable for output temperatures as low as -35 ˚C. Smart design eliminates any need for emergency
cooling. The chiller is energy efficient, low-noise and plug and play. The chiller is housed in a robust frame and can easily be moved using a forklift or crane.
CZ20LTC
Technical specifications
Cooling capacity
200 kW
Cooling capacity
200 kW
Power consumption
195 kW
Current (max)
372 A
Current (nominal)
355 A
Current (start)
276 A
Frequency
50 Hz
Power connection
M12 boutverbinding
Voltage
400 V
Recommended Fuses
400 A
Phases
3 + A
Internal pump
Ja
Water connection
4″ Bauer
Flow minimum (m³/h)
m³/h
Flow minimum (L/min)
L/min
Flow minimum (L/sec)
L/sec
Flow nominal (m³/h)
44 m³/h
Flow nominal (L/min)
733 L/min
Flow nominal (L/sec)
12 L/sec
Flow Maximum (m3/h)
m³/h
Flow maximum (L/min)
L/min
Flow (max.)
L/sec
Recommended volume
1500 L
Maximum working pressure
16 bar
Nominal pressure drop
56 kPa
Sound level (at 5 m)
60 dB(A)
Sound level (at 1 m)
67 dB(A)
Length
6100 mm
Width
2500 mm
Height
2600 mm
Weight
8180 kg
Sound level (at 10 m)
55 dB(A)
