Watercooled air conditioner

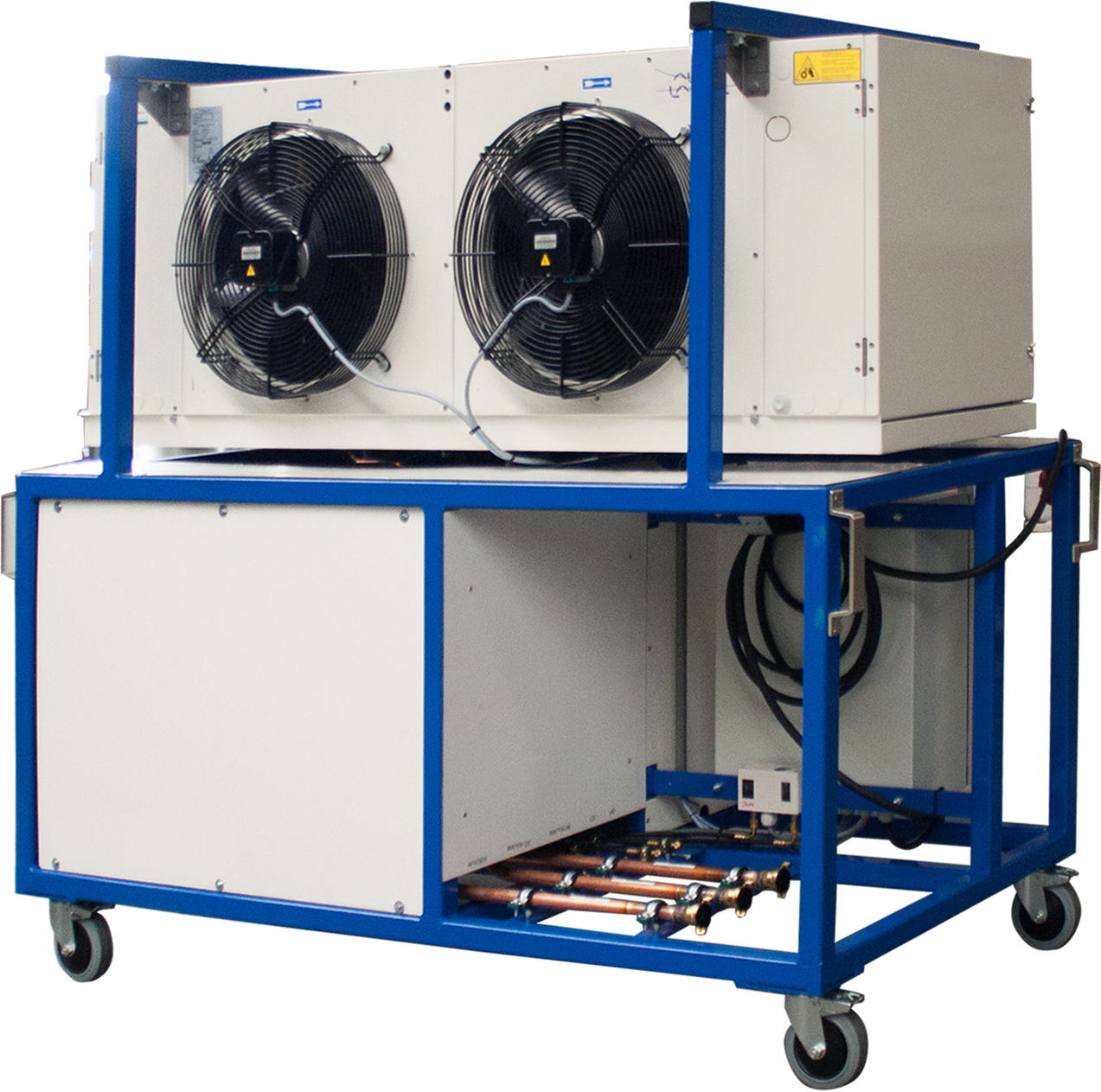

Water-cooled air-conditioning unit with a 20 kW cooling capacity at ambient temperatures of 20 °C (can be used down to 2 °C). The machine features a double fan and has a high air output. The machine has a robust frame and castor wheels for easy repositioning. The machine is ready for use and easy to install with its quick-connectors.
Watercooled air conditioner
Technical specifications
Cooling capacity
22 kW
Cooling capacity
22 kW
Current (nominal)
10.9 A
Power connection
16 A CEE
Max. air flow
6711 m³/h
Voltage
400 V
Recommended Fuses
16 A
Sound level (at 5 m)
54 dB(A)
Sound level (at 1 m)
68 dB(A)
Current (max)
14.5 A
Current (start)
74 A
Frequency
50 Hz
Max. water usage
600 L/h
Min. water pressure
2 bar
Nom. water supply temp.
15 °C
Air volume
6711 m³/h
Phases
3 + A
Water connection
GEKA 1/2″ Bauer
Length
1740 mm
Width
790 mm
Height
1555 mm
Weight
260 kg
Sound level (at 10 m)
48 dB(A)
