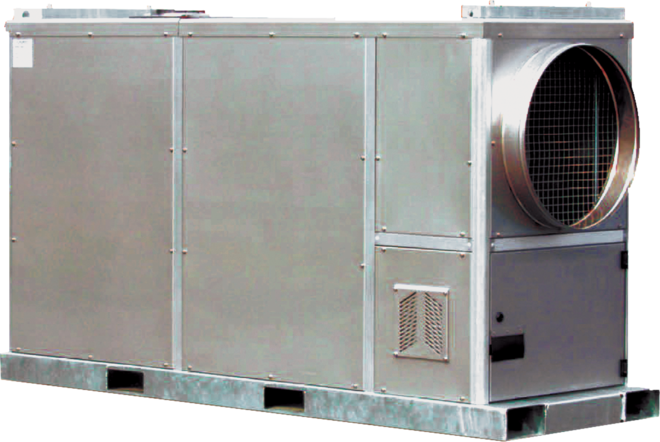

HT20

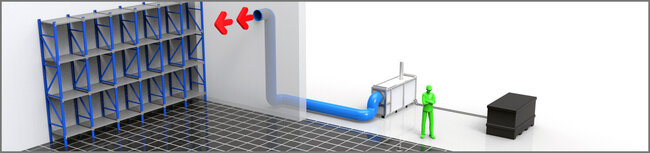

Low noise indirect oil fired heater with a heating capacity of 200 kW. This low-energy machine is ready for use. The machine is mounted in a robust frame and can be moved easily with a forklift or crane.
HT20
Technical specifications
Heating capacity
200 kW
Current (nominal)
9 A
Max. air flow
12000 m³/h
External (Air) pressure
600 Pa
Capacity steps in %
%
Return air possibility
1 x 500 mm
Power consumption
232 kW
Start type
Frequency
50 Hz
Power connection
16/32 A CEE
Voltage
400 V
Recommended Fuses
16 A
Phases
3 + A
Sound level (at 5 m)
68 dB(A)
Sound level (at 1 m)
82 dB(A)
Length
3000 mm
Width
810 mm
Height
1360 mm
Flow minimum (L/min)
770 L/min
Flow minimum (m³/h)
46.2 m³/h
Flow minimum (L/sec)
12.83 L/sec
Recommended volume
2300 L
Nominal pressure drop
30 kPa
Flow nominal (L/sec)
21.33 L/sec
Flow nominal (L/min)
1280 L/min
Flow nominal (m³/h)
76.8 m³/h
Flow (max.)
51.5 L/sec
Flow maximum (L/min)
3090 L/min
Flow Maximum (m3/h)
185.5 m³/h
Maximum working pressure
10 bar
Current (start)
316 A
Recommended fuses
630 A
Standard Cooling Capacity
500 kW
Cooling capacity
505 kW
Sound level (at 10 m)
56 dB(A)
