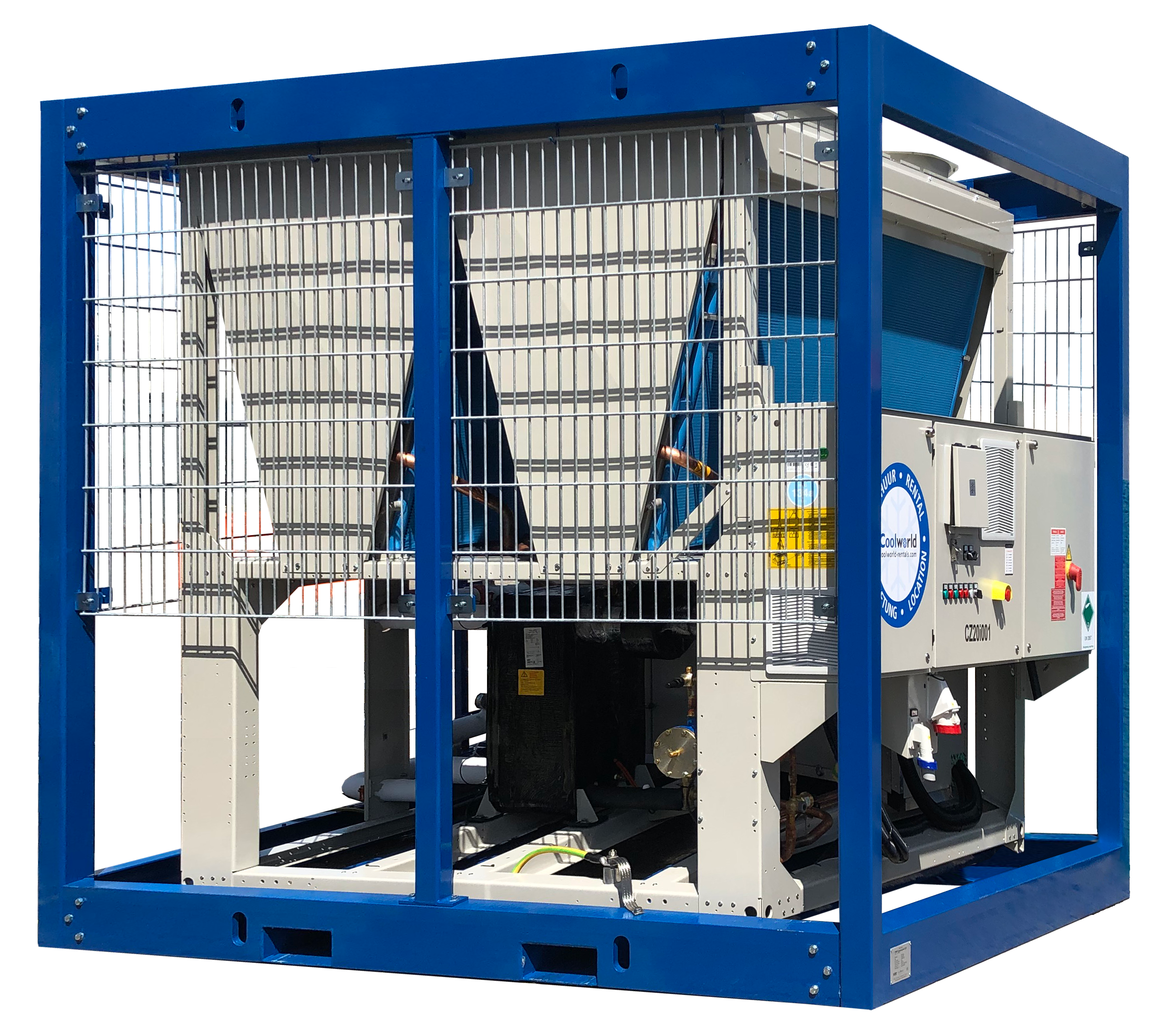

CZ20i
Air-cooled chiller with 200 kW cooling capacity. This low-energy low-noise machine is ready for use and inverter driven. The machine is mounted in a robust frame with a shock-resistant grid for condenser protection and can be moved easily with a forklift or crane.
CZ20i
Downloads
Technical specifications
Cooling capacity
200 kW
Power consumption
70 kW
Current (nominal)
117 A
Power connection
M12
Voltage
400 V
Recommended Fuses
160 A
Phases
3 + PE
Internal pump
Nee/Non/Nein
Flow nominal (L/sec)
9.6 L/sec
Water connection
2″ Bauer
Maximum working pressure
10 bar
Nominal pressure drop
20.3 kPa
Length
2780 mm
Width
2450 mm
Height
2680 mm
Weight
3300 kg
Sound level (at 10 m)
55 dB(A)
