CZ62i

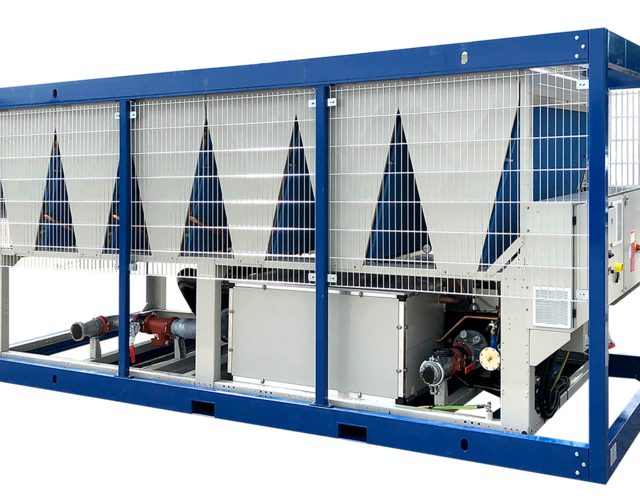

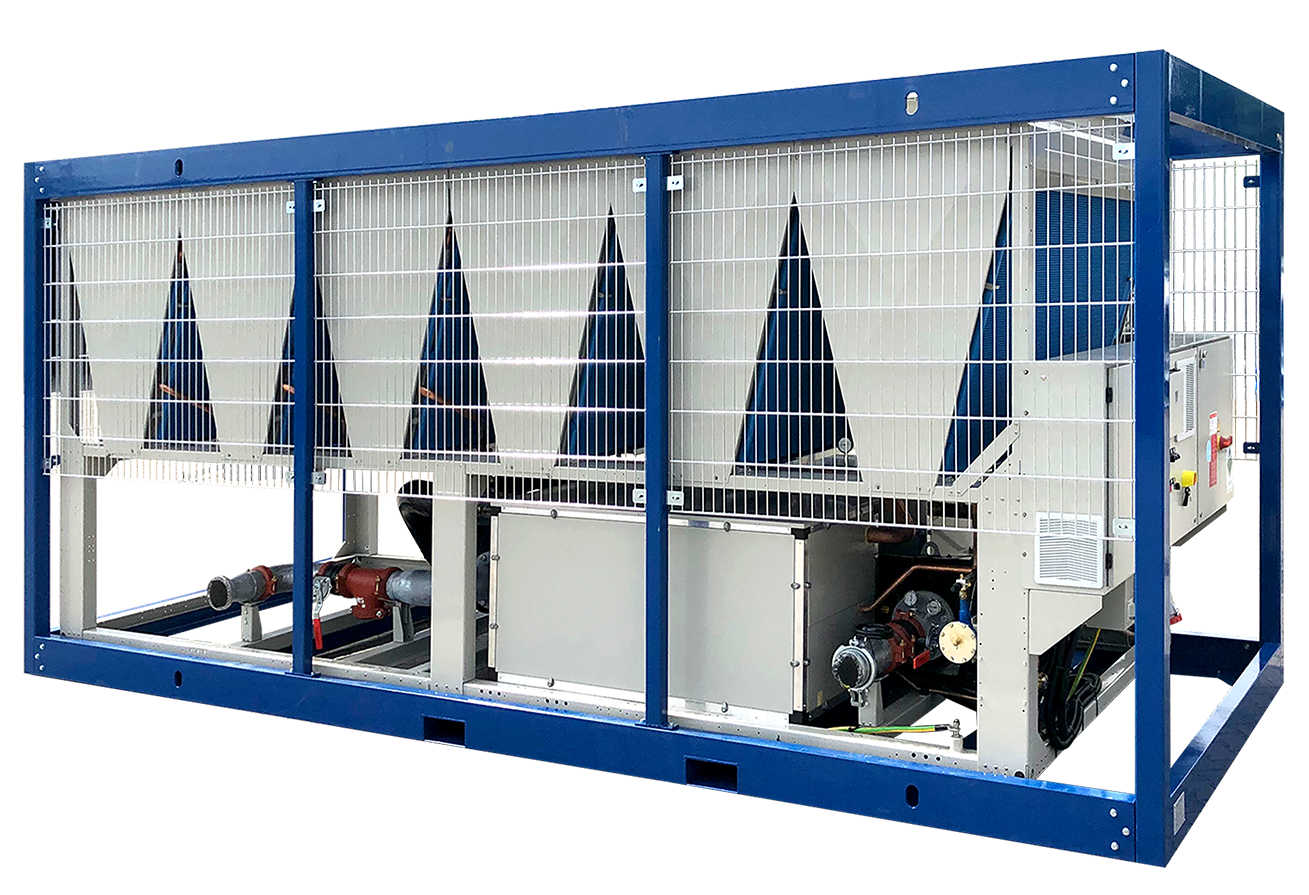

Air-cooled chiller with 610 kW cooling capacity. This low-energy inverter driven chiller is ready for use. The machine is mounted in a robust frame with a shock-resistant grid for condenser protection and can be moved easily with a crane.
CZ62i
Downloads
Technical specifications
Cooling capacity
610 kW
Power consumption
218 kW
Current (max)
455 A
Current (nominal)
370 A
Power connection
M12
Voltage
400 V
Recommended Fuses
400 A
Phases
3 + PE
Internal pump
Nee/Non/Nein
Flow nominal (L/sec)
28.1 L/sec
Water connection
10″ Bauer
Maximum working pressure
16 bar
Nominal pressure drop
38.6 kPa
Length
6200 mm
Width
2450 mm
Height
2700 mm
Weight
6700 kg
Sound level (at 10 m)
59 dB(A)
