Boiler

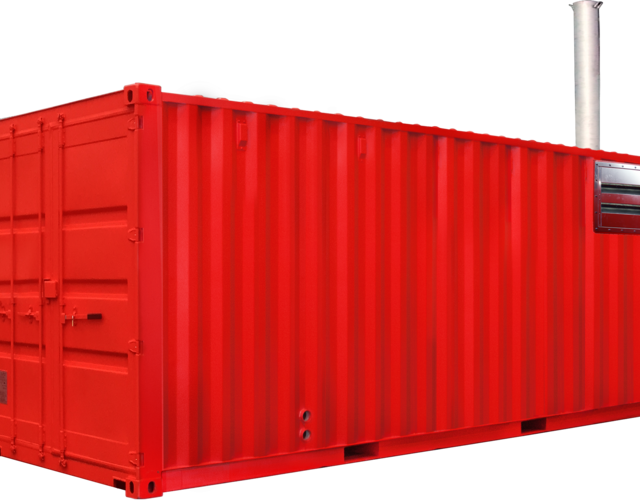

Gas- or diesel-fired mobile boiler room with a heating capacity of 600 kW installed in a robust steel heating container. The powerful and compact unit is easy to install, also in hard to reach locations. The mobile industrial boilers provide water temperatures of up to 90 °C and pressures of up to 6 bar. The efficient boiler features various safety facilities, frost protection, low NOx burners, smart control technology and has the lowest emissions, energy consumption and noise levels in the European market
Boiler

Technical specifications

Heating capacity 600 kW
Voltage 400 V
Power connection 32 A CEE
Temperature range 50 - 90 °C
Internal pump 26.5 m³/h
Controller Digitaal
Water connection 4″ Bauer
Oil tank double-wall Optioneel
Volume expansion vessel 360 l
Recommended working pressure 1.6 - 3.0 bar
Safety valve 6.0 bar
Dimensions LxWxH (including connections) 6370x2440x2735 mm
Length 4550 mm
Width 2450 mm
Height 2770 mm
Fuel types Gas / Diesel
Low NOx class 3
Consumption - oil - full load 55 kg/h
Consumption - gas - full load 74 m³/h
Dimensions (LxWxH) 6058 x 2438 x 2735 mm
Weight 5500 kg
Oil / Gas burner Weishaupt
Brand pump Grundfoss
