Boiler

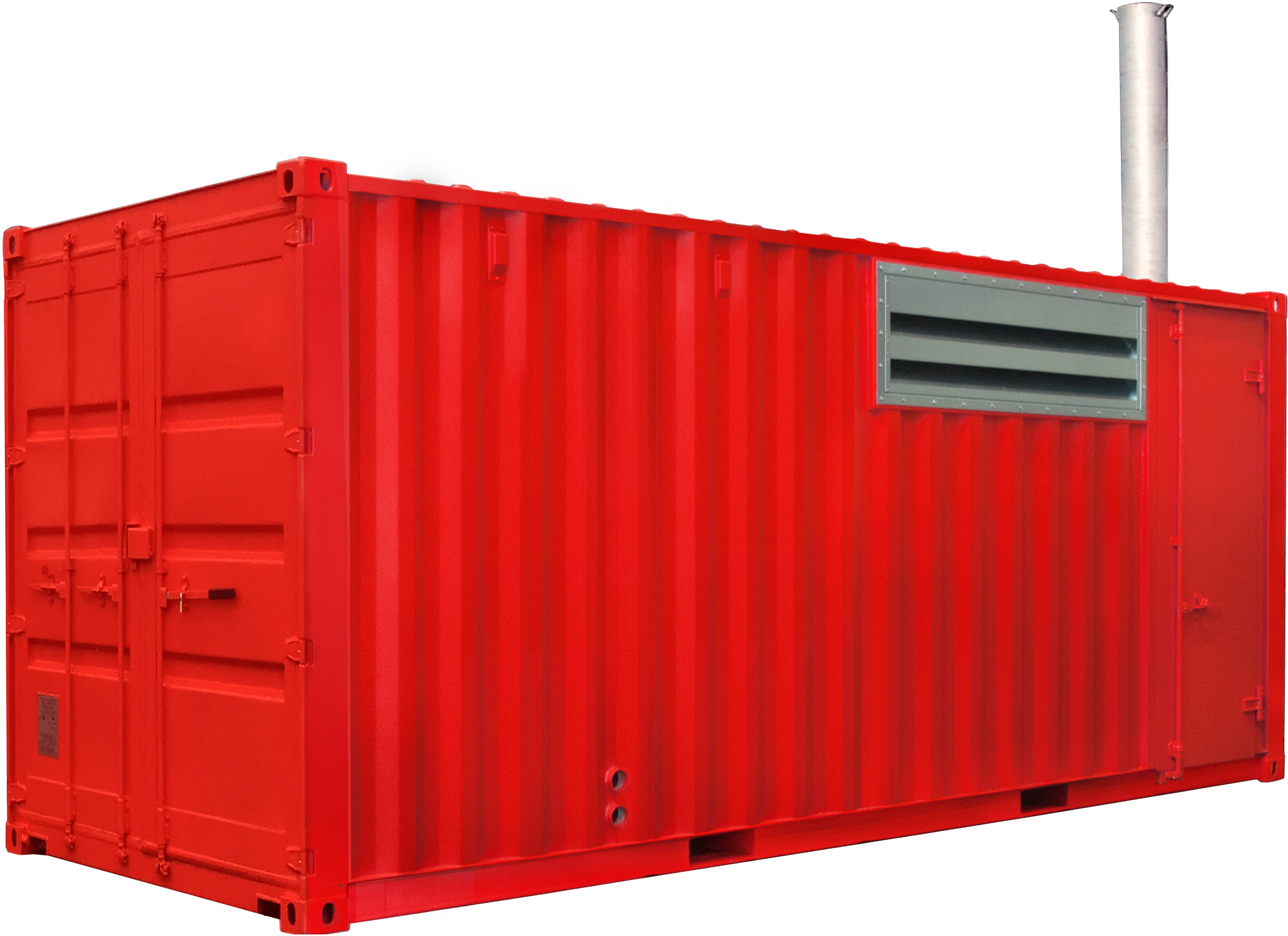

Gas- or diesel-fired mobile boiler room with a heating capacity of 2,000 kW installed in a robust steel heating container. The powerful and compact unit is easy to install. The mobile industrial boilers provide water temperatures of up to 90 °C and pressures of up to 6 bar. The efficient boiler features various safety facilities, frost protection, low NOx burners, smart control technology and has the lowest emissions, energy consumption and noise levels in the European market.
Boiler
Technical specifications
Heating capacity
2000 kW
Voltage
400 V
Power connection
63 A CEE
Temperature range
50 - 90 °C
Internal pump
88.5 m³/h
Controller
Digitaal
Water connection
4″ Bauer
Oil tank double-wall
Optioneel
Volume expansion vessel
720 l
Recommended working pressure
1.6 - 3.0 bar
Safety valve
6 bar
Dimensions LxWxH (including connections)
6370x2560x2735 mm
Length
6058 mm
Width
2438 mm
Height
2591 mm
Fuel types
Gas / Diesel
Low NOx class
3
Consumption - oil - full load
182 kg/h
Consumption - gas - full load
246 m³/h
Dimensions (LxWxH)
6058 x 2438 x 2735 mm
Weight
9000 kg
Oil / Gas burner
Weishaupt
Brand pump
Grundfoss
