Chiller

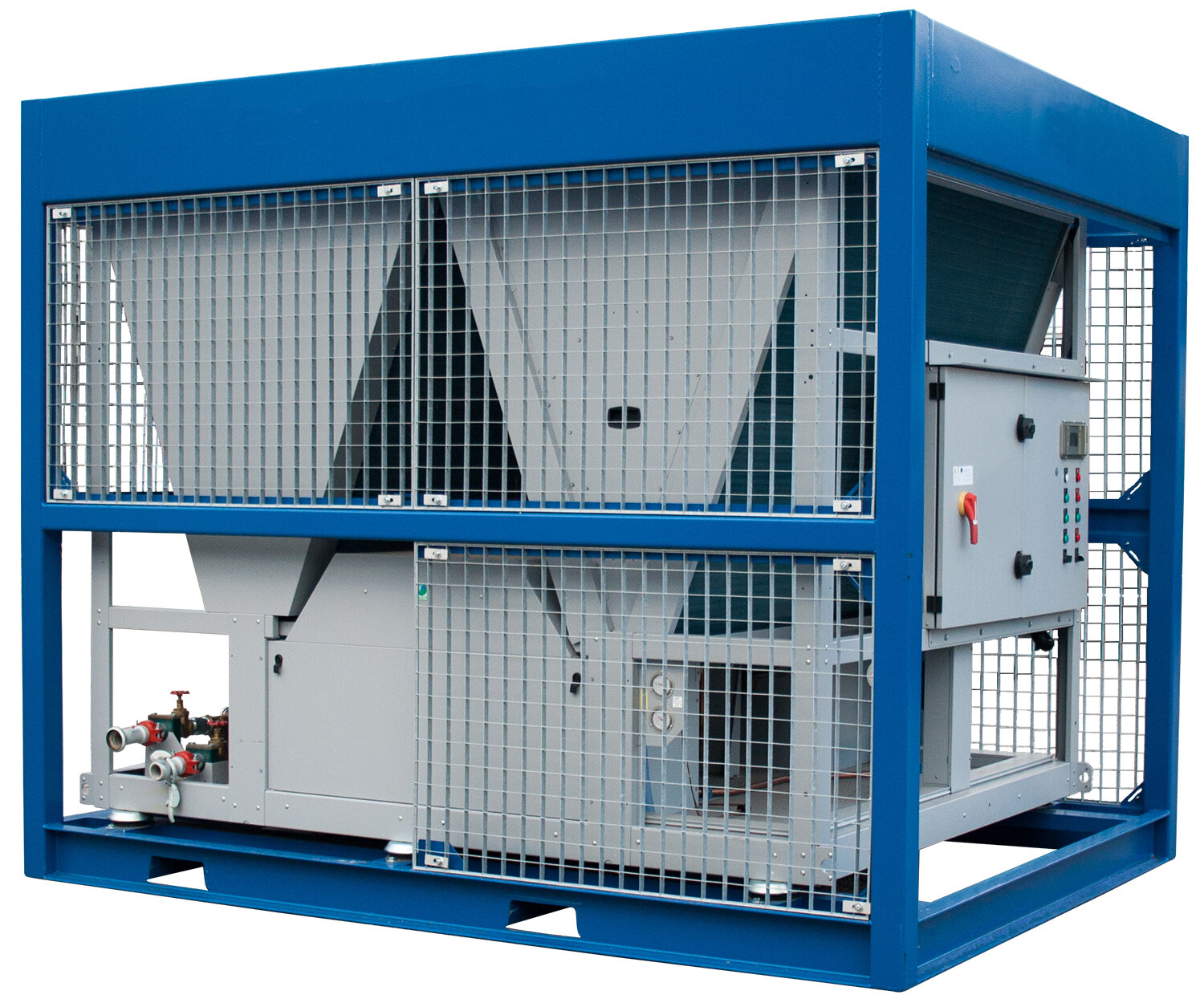

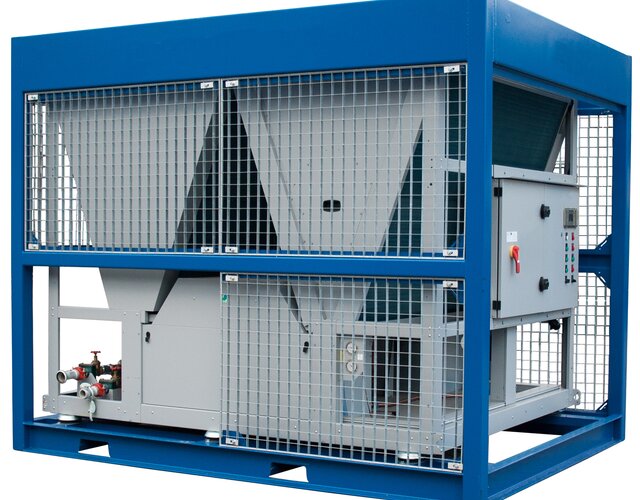

Chiller / Air-cooled Heat pump with 125 kW Cooling capacity and 144 kW Heating capacity. This low-energy low-noise machine is ready for use.The machine is mounted in a robust frame with a shock-resistant grid for condensor protection and can be moved easily with a forklift or crane.
Chiller
Technical specifications
Cooling capacity
125 kW
Heating capacity
144 kW
Power consumption
41.9 kW
Current (nominal)
70 A
Current (start)
262 A
Frequency
50 Hz
Power connection
125 A CEE
Voltage
400 V
Recommended Fuses
125 A
Phases
3 + A
Internal pump
Ja
Water connection
2″ Bauer
Flow minimum (m³/h)
15.6 m³/h
Flow minimum (L/min)
260 L/min
Flow minimum (L/sec)
4.3 L/sec
Flow nominal (m³/h)
25.0 m³/h
Flow nominal (L/min)
417 L/min
Flow nominal (L/sec)
6.9 L/sec
Recommended volume
469 L
Maximum working pressure
10 bar
Nominal pressure drop
44 kPa
Sound level (at 5 m)
63 dB(A)
Sound level (at 1 m)
77 dB(A)
Length
3200 mm
Width
2500 mm
Height
2600 mm
Weight
2720 kg
Sound level (at 10 m)
57 dB(A)
