AC05B

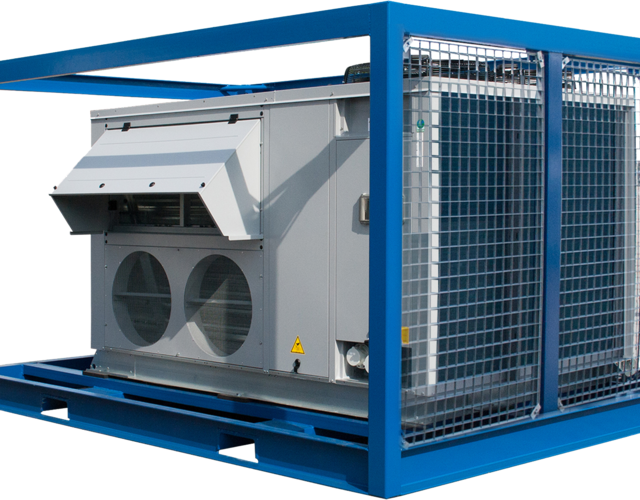

Ultra low-noise air-cooled air conditioner / heat pump with a 50 kW cooling and heating capacity. The unit is energy-efficient and can be used in both summer and winter. This unit is plug ‘n’ play, which makes it very easy to install and operate. The unit has been mounted in a robust steel frame fitted with grates to prevent the condensers from being damaged. It can be moved easily with the use of a lift truck or a crane.
AC05B
Technical specifications
Cooling capacity
48.6 kW
Heating capacity
50.2 kW
Capacity with additional reheating
27 kW
Power consumption
15.1 kW
Power connection
63 A CEE
Power connection (with post heating)
125 A CEE
Voltage
400 V
Phases
3 + N + A
Outlet temperature (min.)
16 °C
Max. inside temperature
33 °C
Length
3200 mm
Width
2500 mm
Height
1900 mm
Air volume (cold side)
9200 m³/h
Warm air duct (diam.)
2x500 mm
Warm air duct (max. length)
m
Dehumification
L/h
Current (start)
148/193 A
Current (nominal)
55/101 A
Power consumption
16 kW
Recommended fuses
63/125 A
Frequency
50 Hz
Sound level (at 5 m)
33 dB(A)
Sound level (at 1 m)
41 dB(A)
Weight
1645 kg
Sound level (at 10 m)
28 dB(A)
