EH09M

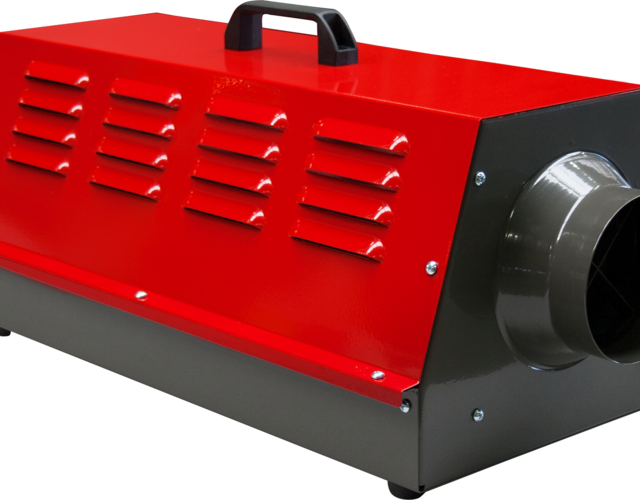

Compact 3.0/4.5/9.0 kW mobile electric heater for heating on-the-spot and small rooms. Can be used instantly where power is available. Air hose connection possible. The unit is ready for use and easy to install.
EH09M
Test 2

Downloads

Productsheet Downloads

Technical specifications

Heating capacity 3.0 / 4.5 / 9.0 kW
Power connection 16 A CEE
Voltage 400 V
Phases 3 + A
Controller Thermostatisch
Length 670 mm
Width 335 mm
Height 310 mm
Weight 19 kg
Warm air duct (diam.) 120 mm
Warm air duct (max. length) 3 m
Air volume 550 m³/h
Max. inside temperature 40 °C
Protection class IP44
