Dry Cooler

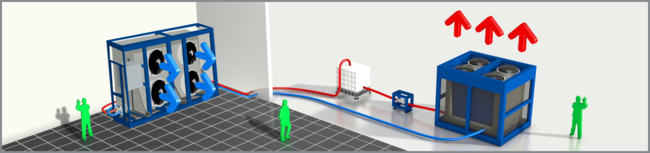

The dry cooler is a cooler in which the process water is passed through a cooling block and cooled by ambient air. This is done by a forced air flow over the cooling block. This with an infinitely variable ventilation control. This unit can also be used as a heater. The unit is ready to plug in and easy to install due to the use of shortcuts. The unit can easily be moved with a forklift truck.
Dry Cooler
Technical specifications
Cooling capacity
355 kW
Heating capacity
1200 kW
Current (nominal)
22 A
Power connection
32 A CEE
Recommended Fuses
32 A
Max. air flow
100.800 m³/h
Water connection
4″ Flens
Dimensions (LxWxH)
5251 x (1040+270) x 2680 mm
Weight
2050 kg
Sound level (at 10 m)
63 dB(A)
