CH05D

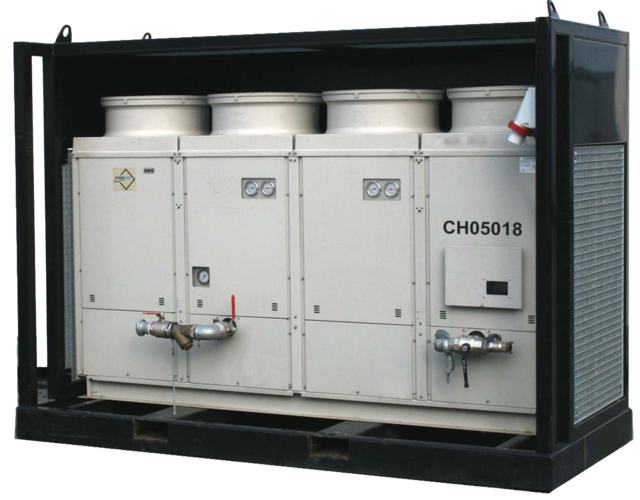

Air-cooled chiller with 50 kW cooling capacity, complete with internal water pump and buffer tank. This low-energy low-noise machine is ready for use. The machine is mounted in a robust frame with a shock-resistant grid for condenser protection and can be moved easily with a forklift or crane.

CH05D

Technical specifications

Cooling capacity 55.3 kW

Power consumption 24 kW

Current (nominal) 43 A

Current (start) 143 A

Frequency 50 Hz

Power connection 63 A CEE

Voltage 400 V

Recommended fuses 63 A

Phases 3 + N + A

Internal pump Ja

Water connection 2″ Bauer

Flow minimum (m³/h) 5 m³/h

Flow minimum (L/min) 83 L/min

Flow minimum (L/sec) 1.4 L/sec

Flow nominal (m³/h) 9.7 m³/h

Flow nominal (L/min) 160 L/min

Flow nominal (L/sec) 2.7 L/sec

Flow Maximum (m3/h) 19 m³/h

Flow maximum (L/min) 317 L/min

Flow (max.) 5.3 L/sec

Recommended volume 132 L

Maximum working pressure 4 bar

Nominal pressure drop 30 kPa

Sound level (at 5 m) 51 dB(A)

Sound level (at 1 m) 65 dB(A)

Length 2800 mm

Width 1200 mm

Height 2050 mm

Discharge head 29.5 m

Weight 1006 kg

Sound level (at 10 m) 45 dB(A)
